Large Capacitor Bank Project
Components

Max Bigelmayr, Dez. 2025 (V01)

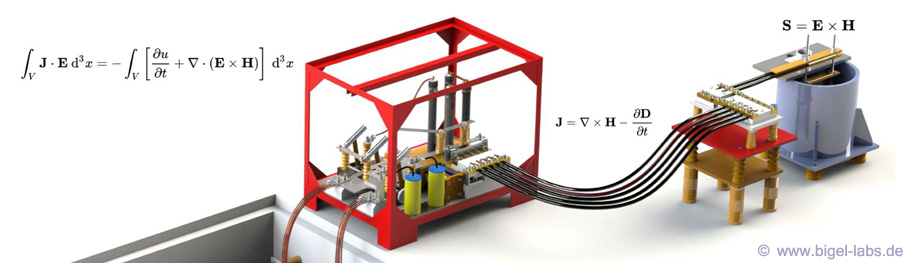

The large capacitor bank project consists of a variety of parts and assemblies, all of which have been optimized in CAD. Since a detailed description of each component would far exceed the scope of this website, only a few key assemblies will be briefly presented here.

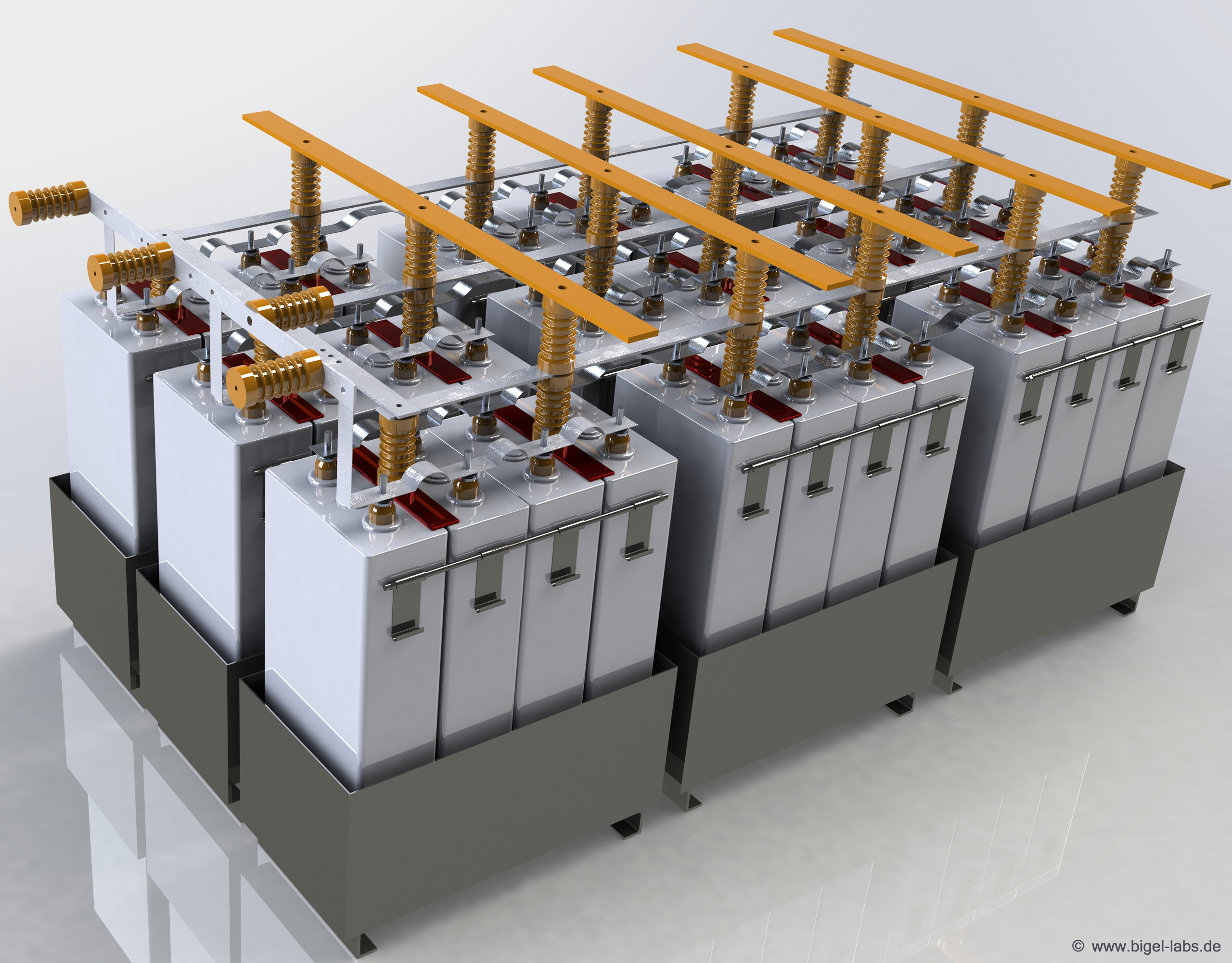

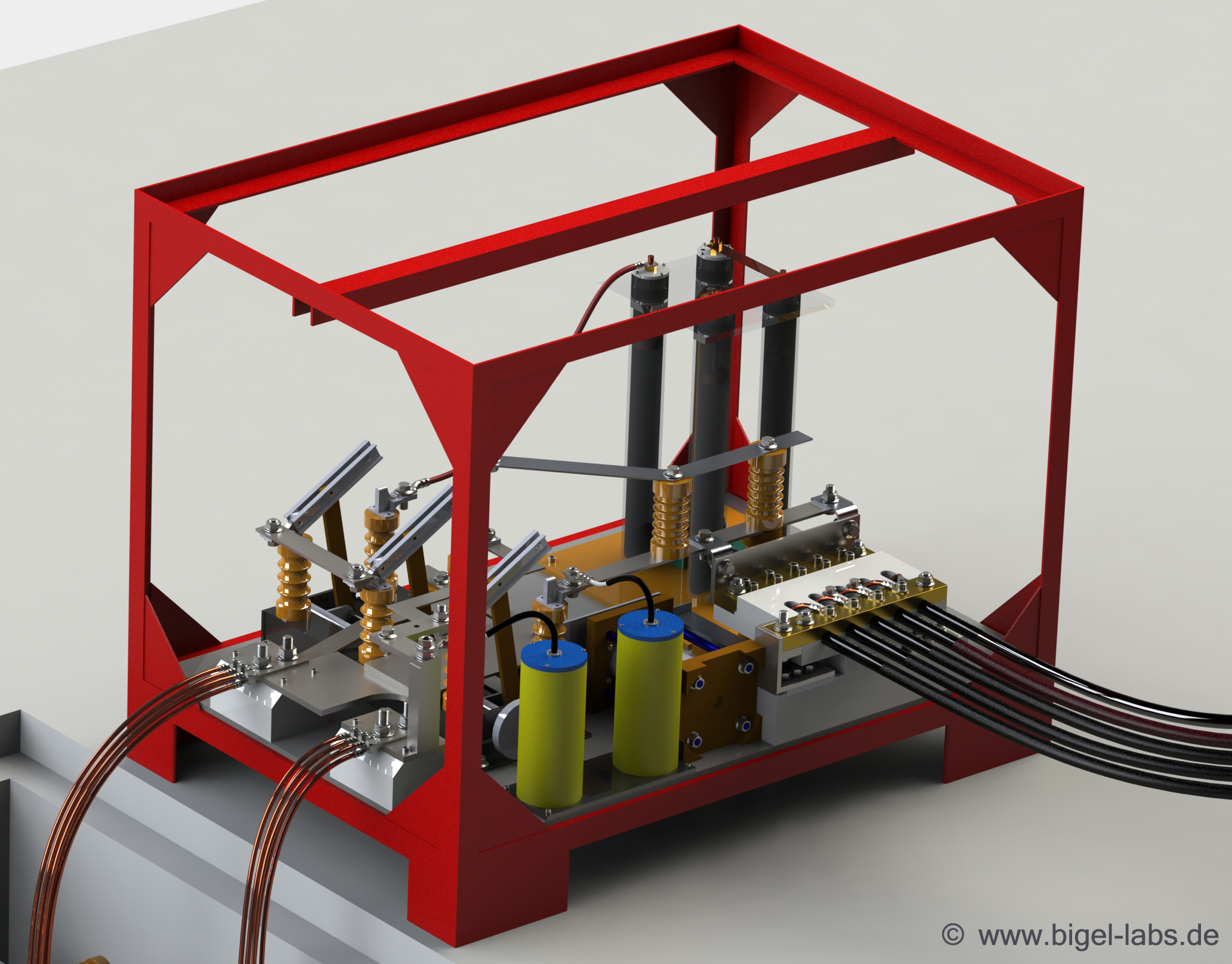

Fig. 1: Capacitor Bank Setup containing 36 high voltage capacitors	Fig. 2: Discharge Stillage including high voltage switchings

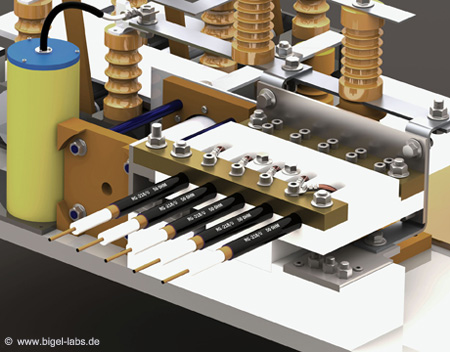

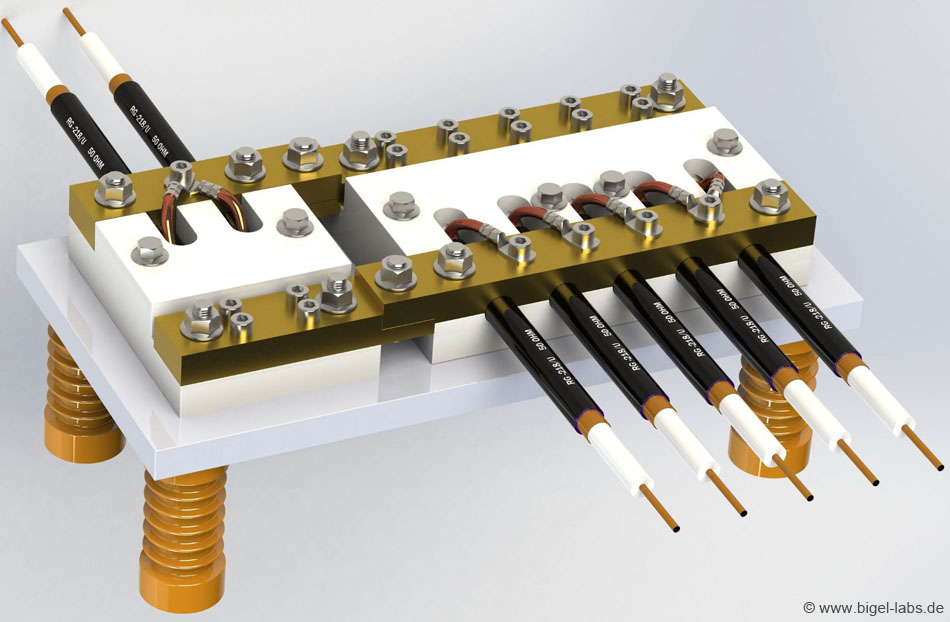

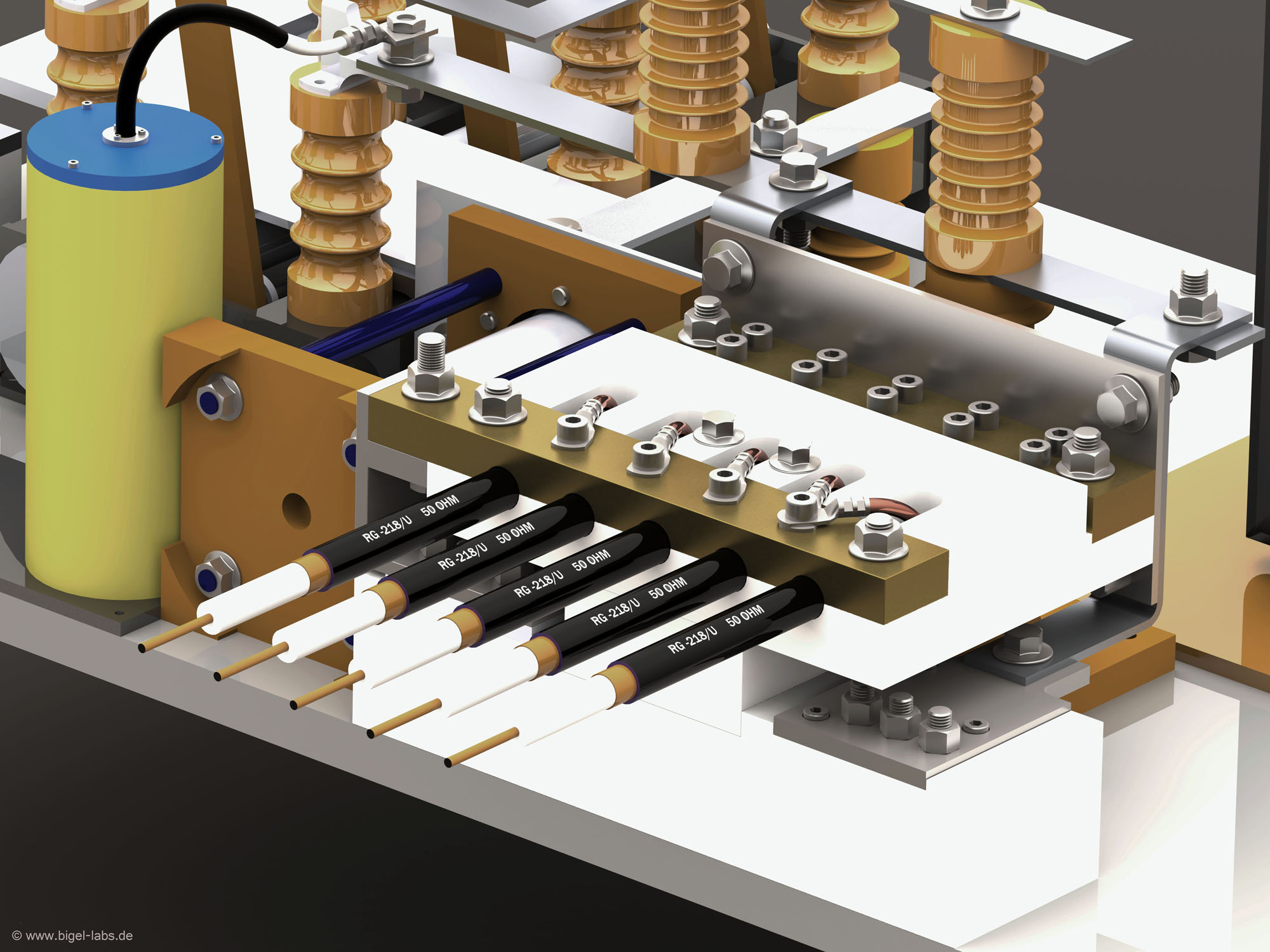

Fig. 3: Coaxial Cabel Connector (6x RG218U)	Fig. 4: Coaxial Cable Adapter

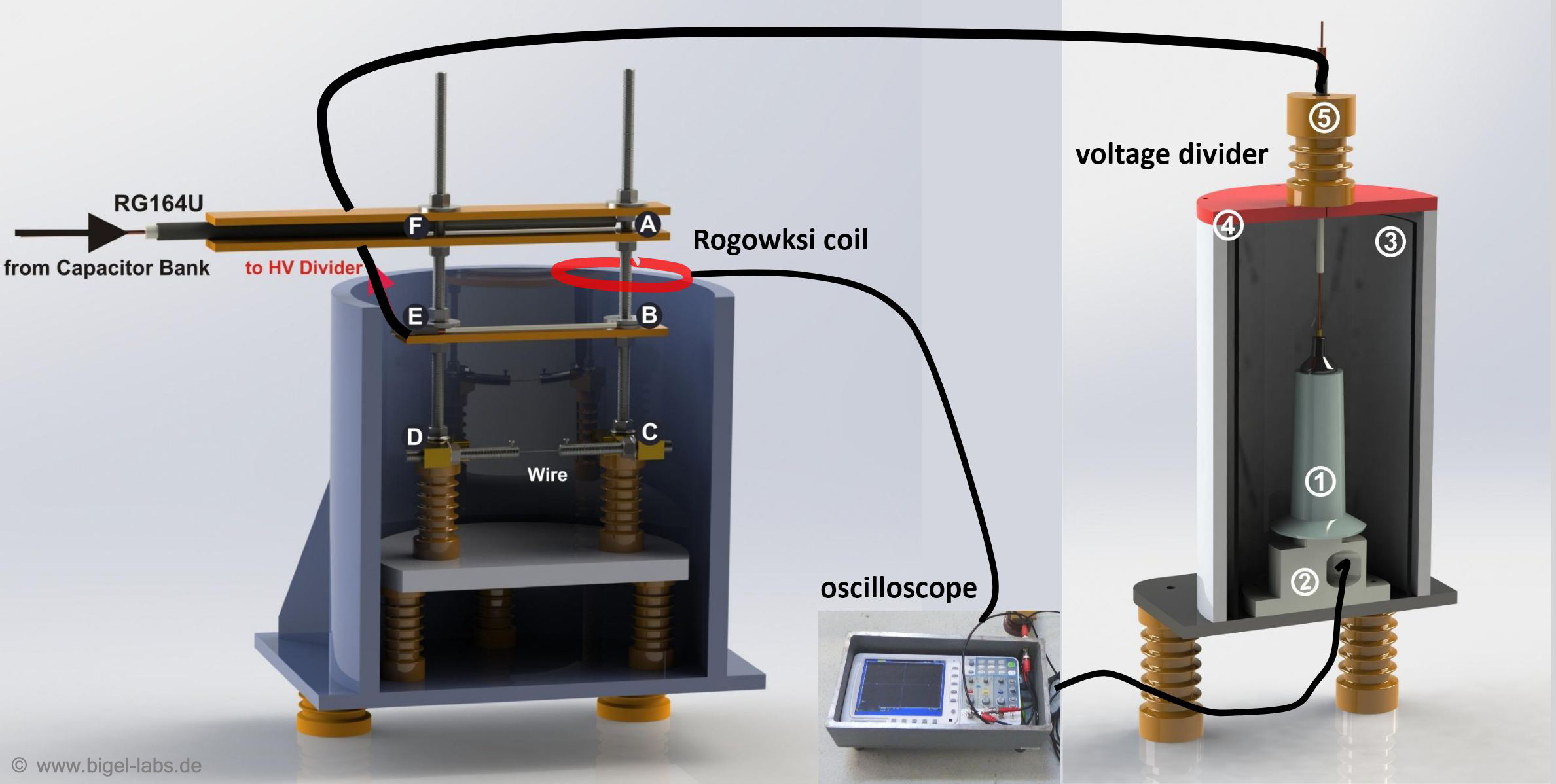

Fig. 5: Experimental Setup for Pulsed Wire Discharges powered by the Large Capacitor Bank
